Bottle Washing Machines

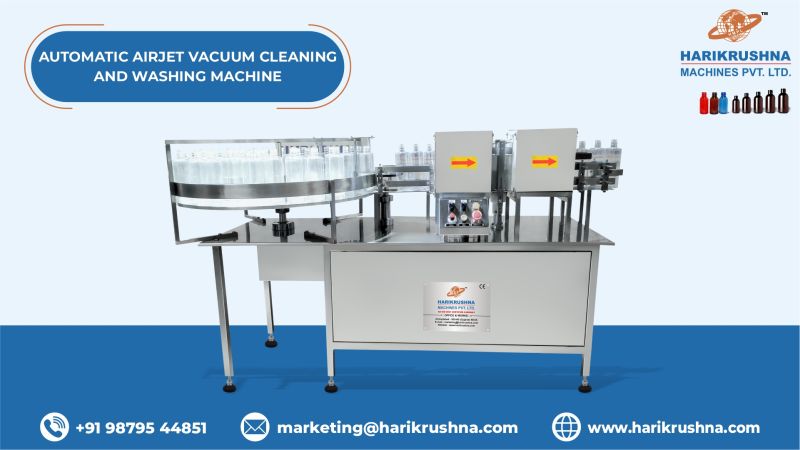

Automatic Air Jet Vacuum Cleaning Machine

The Automatic Air Jet Vacuum Cleaning Machine consists of the main structure, product in-feed screw, in-feed star plate, pneumatic component, washing nozzles, electrical panel, AC drive & motor.

Key Features :

•     The unit is made compact & versatile as per GMP norms.
•     The structure is made of MS and cladded with SS304.
•     Rigid vibration-free construction for trouble-free performance.
•     Contact parts are made of SS 316.
•     Two nos. of nozzle for cleaning of bottles.
•     Made of 10mm thick aluminum plate with SS 304 cladding.
•     Bearing support for the rotating disc for long life.
•     Change parts required for different bottles i.e.. in-feed star plate & in-feed screw.
•     The machine can be utilized for various sizes (Diameter) of products.
•     User-friendly and very less maintenance required.
•     Automatic in-feed and out-feed of bottles.
•     Most reliable and proven components such as Festo/SMC make pneumatics and electrical/electronic such as Bonfiglioli/Motovario make AC motor, MCB & relay “CE” make.

Automatic Rotary Bottle Washing Machine - Glass and PP Bottles

The Automatic Rotary Bottle Washing Machine for Glass and PP Bottles consists of the main structure, rotary platform, bottle holder/cups, flow regulators, pressure meter, solenoid valve, Geneva mechanism, 2 nos. of SS tanks with pump, nozzle, electrical panel & AC motor.

Key features

• The Rotary Bottle Washing Machine is made compact & versatile as per GMP norms.
• The structure is made of MS and cladded with SS304.
• Rigid vibration-free construction for trouble-free performance.
• The contact parts such as Rotary washing nozzle, Rotary washing pump impeller, tanks, cup/bottle holder plate are made of Stainless Steel 304.
• Easy to clean the base of the machine by removing the top cover.
• The tanks capacity is 75 liters each.
• Specially designed SS 304 Impeller-based AC motor for pumps.
• Pumps and tanks are mounted on a portable stand for easy maintenance and cleaning purpose.
• Higher capacity of centrifugal pumps to wash bigger bottles (500ml & 1000 ml).
• Stationary nozzles to eliminate contamination of water cycles.
• Specially designed Geneva Mechanism.
• Four inner wash (Included one air wash, two inner wash with recycled tray) & one outer wash.
• Easy loading/unloading & operation.
• Individual solenoid valve use for each wash – which eliminates carbon plate and other accessories. This is to avoid leakages and minimize the maintenance ratio.
• Individual flow regulating valves to control the flow of water.
• Bottle guide system especially for lightweight bottle.
• Separate panel control to avoid any short circuit due to spraying of water.
• SS glycerin-filled pressure meter

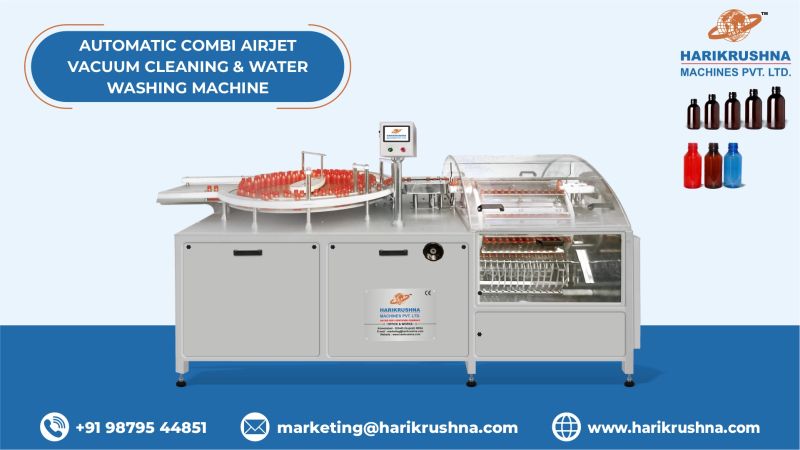

Automatic Combi Air Jet Vacuum Cleaning & Water Washing Machine

Automatic Combi Air Jet Cleaning and Water Washing Machine (For Rinsing of 30 ml to 200 ml Round Glass & PET Bottles) HMPL High-Speed Linear Bottle Washing Machine is most ideal for Round/Flat Bottles and finds wide application in Pharma, Food & Beverages Industries.

Key Features

•     The structure is made of MS cladded with SS 304 including the basic frame.
•     Rigid vibration-free construction for trouble-free performance.
•     High-pressure spray nozzles ensure a perfect wash of bottles.
•     Interchangeable wash sequences.
•     The machine suitable for handling washes of round and flat glass bottle (With help of change parts).
•     All parts coming in contact with washing zones / jet are made from SS 316 L materials.
•     Pumps and tanks are mounted on a portable stand for easy maintenance and cleaning purpose.
•     Water recycling arrangement is possible as per customer’s need.
•     Higher capacity centrifugal pump to wash bigger containers.
•     Third Tank & pump can be fitted (optional).
•     Most reliable and proven components such as Festo/SMC/Janatics make pneumatic and electrical/electronic such as Bonfiglioli/Motovario/Rotomotive make AC motor, Delta make AC drive, MCB & relay “CE” make.
•  The machine is manufactured or developed accordance with GMP standards.

Semi-Automatic Air Jet Vacuum Cleaning Machine

The Semi-Automatic Air Jet Vacuum Cleaning Machine consists of the main structure, Ionizer, Air Nozzle, and Vacuum Suction Blower.

Key Features

•     The machine is manufactured or developed accordance with GMP standards.
•     The structure is made of SS 304.
•     Rigid vibration free construction for trouble-free performance.
•     Contact parts are made of SS 316.
•     Two nos. of nozzle for cleaning of bottles.
•     Bottles loaded manually on the bottle holder.
•     Pressure regulator with pressure switch optionally provided.
•     Adjustable height of the cleaning unit based on the height of the bottles/containers.
•     User-friendly and very less maintenance required.
•     Machine is given with very high velocity of air, effective cleaning of containers.
•     Machine with foot-operated switch.
•     Machine is given with inbuilt vacuum blower to suck loosened particles from the inner surface of the container.
•     Most reliable and proven components such as Festo/SMC/Janatics make pneumatic and electrical/electronic such as Bonfiglioli/Motovario/Rotomotive make AC motor, MCB & relay “CE” make.
