Tube Filling Machine

Key Features :-

•     The machine is manufactured or developed accordance with GMP standards.
•     Structure is made of MS cladded with SS 304.
•     This machine is specially designed to fill, seal and code the Aluminum / LAMI / PVC Tubes.
•     It can be used to fill viscous as well as semi viscous materials in Aluminum / LAMI / PVC Tubes.
•     Machine preset with 20gms to 100gms Piston & Cylinder.
•     All the contact parts are made of SS 316 (GMP Model).
•     Tube holders are made of nylon for different diameter of tube.
•     Relay electrical control systems operating panel with START, STOP and INCH.
•     SENSOR BASE NO TUBE NO FILLS MECHANISM.
•     Specially designed hot air sealing unit to seal PVC tubes.
•     Motor with variable speed.
•     All moving parts are guarded / enclosed.
•     Coding Device with 10 letters for one side.
•     Hopper temperature thermocouple with digital display.

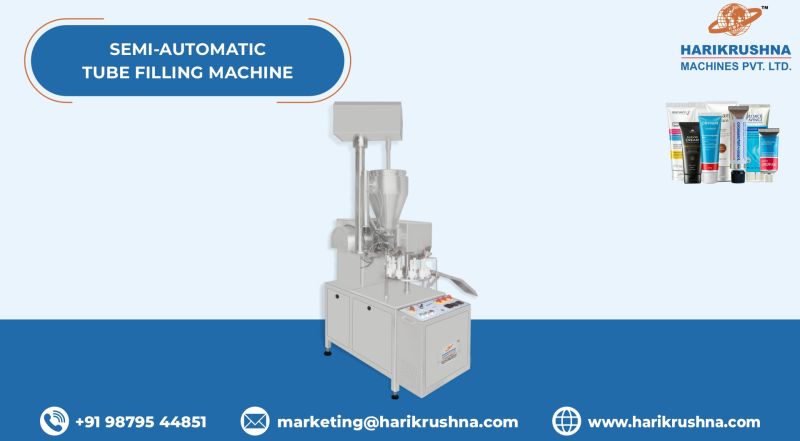

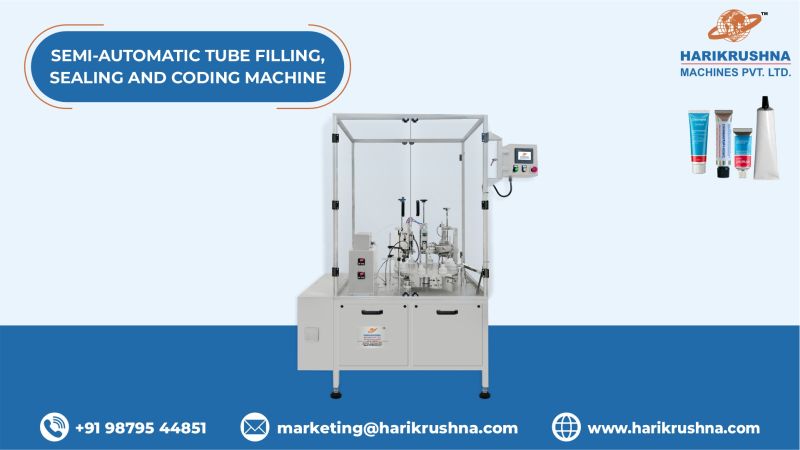

Semi-Automatic Tube Filling, Sealing and Coding Machine

Semi-automatic tube filling, sealing and coding machine for packaging 10gms to 250gms exclusively designed for laminate, aluminium and PVC Tubes (With the help of required change parts) with up to 25 tubes per minute output speed. This machine is suitable for filling, sealing, crimping, and batch coding with synchronized operations. Harikrushna Machines Pvt. Ltd. (HMPL)'s state-of-the-art Semi-Automatic Tube filling machine is suitable for 12 mm Ø to 50 mm Ø (Standard) tube diameter with 45 mm to 200 mm tube length with up to 25 tubes per minute output speed with the help of required change parts. (Depending on viscosity of material, loading & fill capacity) This machine complies with USFDA and EUGMP standards. Its structure features mild steel (MS) cladded with stainless steel (SS) 304. This machine is designed specifically for filling, sealing, and coding Aluminum, LAMI, and PVC tubes and efficiently handles both viscous and semi-viscous materials. During operation, manually place empty tubes into the tube holder. The wheel rotates from left to right, advancing through each stage step by step. First, the filling head dispenses a precise amount of paste or ointment into the tube. Then, the sealing head seals the tube. Finally, it performs the coding process. After coding, an ejector rod lifts the sealed tube from the holder at the next station.
